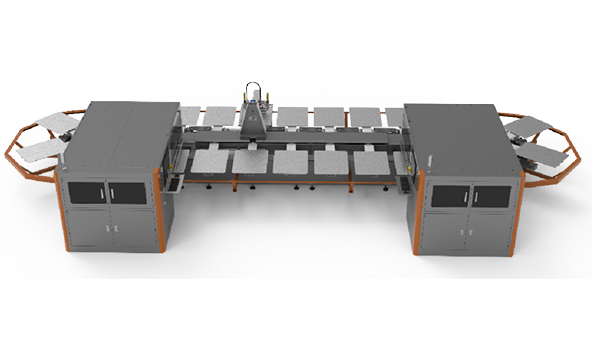

Hong-Jet® DTG Oval Printer Description
Hong-Jet® DTG Oval Printing Solution with RCT (Rapid Color Technology) is equipped with Epson / Ricoh printheads, developed for the mass production of garment, significantly increase production capacity and reduce labor costs. The system integrates downstream processing procedures into a single production line, enabling one-stop garment panel printing and finishing. It is designed to meet the demands of high-volume garment panel production with improved efficiency and streamlined workflows.
Parameters of Hong-Jet® DTG Oval Printer
Equipment Configuration |
|
| Item | Specifications |
| Overall Machine Dimensions |
10.94 × 4.26 m |
|
Components |
2 print carriages; 5 flash dryers; 1 squeegee arm |
|
Number of Pallets |
26 pallets |
| Pallets Size |
45 × 86.5 cm |
|
Print Carriage Configuration |
Option 1: Dual-carriage configuration: 8 printheads + 16 printheads. Printhead: EPSON I3200-A1 (1 OP + 8 C). Option 2: Dual-carriage configuration: 5 printheads + 15 printheads. Printhead: Ricoh G6 (1 OP + 6 C). |
|
Printing Software |
RIIN / NeoStampa |
|
Ink Type |
DTG wet-on-wet ink |
|
Printheads Model |
EPSON I3200-A1 / Ricoh G6 |
|
Printing Configuration |
8 printheads: OP printing 16 printheads: print |
|
Ink Supply System – Epson Printheads |
8 printheads: ink bag supply system; 16 printheads: negative-pressure ink supply system. |
|
Ink Supply System – Ricoh Printheads |
Negative-pressure ink supply system for both print carriages. |
Capacity Parameter |
|||
|
Solution |
Printhead |
Printing Width |
Production Capacity |
|
Option 1 |
EPSON I3200-A1 |
≤ 25 cm |
Approx. 280 pcs/hour |
|
Option 2 |
Ricoh G6 |
≤ 27 cm |
Approx. 350 pcs/hour |
Printed Samples of Hong-Jet® DTG Oval Printer
