Water Based Printing Solution for Footwear (Blended /mesh fabrics)

Project Background

The footwear materials industry is evolving as manufacturers adopt a wider range of fabrics and synthetic materials. In traditional footwear fabric production, polyester-based materials have commonly been printed using heat transfer technology. However, as material choices diversify, conventional heat transfer processes may become less suitable for certain applications.

Blended fabrics, mesh fabrics, and selected heat-sensitive materials present new challenges for traditional printing methods. Footwear manufacturers increasingly need printing solutions that offer greater material adaptability, stable production performance, and improved manufacturing efficiency.

At the same time, rising labor costs and increasing production demands are driving manufacturers to seek more efficient printing workflows for both roll materials and pre-cut footwear components.

To address these requirements, HONGJET has developed footwear material printing solutions based on HONGSAM RCT latex printing technology. The solutions include a roll-to-roll belt printer for continuous fabric production and an Epson printhead-based oval digital printing machine for high-volume cut-piece production.

Solution Overview: Two Production Routes for Footwear Materials

HONGSAM offers two equipment configurations to accommodate different footwear material production workflows.

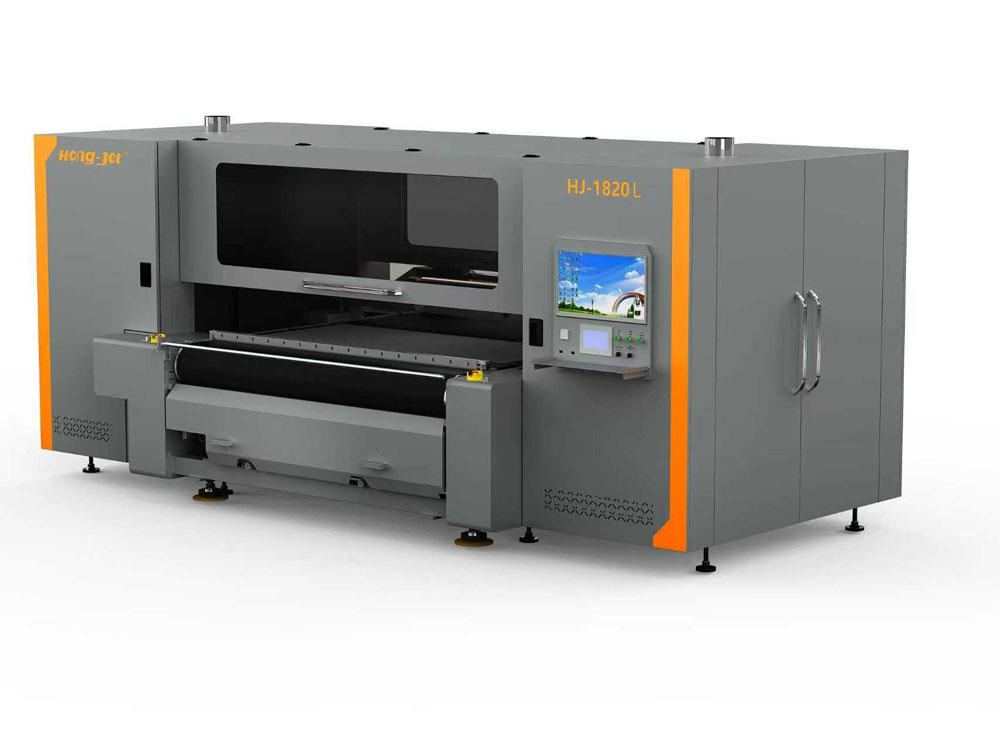

1. Roll-to-Roll Latex Printing Solution - Equipment: Hong-Jet^® Pishow HJ-1820L Belt Printer

The HJ-1820L is designed for continuous roll-to-roll printing on footwear materials, including mesh fabrics and selected blended or heat-sensitive materials. Based on HONGSAM RCT latex printing technology, the system integrates printing, drying, and winding into a production line. This configuration supports continuous material processing and helps footwear material manufacturers establish a more streamlined printing workflow.

Key features include:

Roll-to-roll production: Designed for continuous printing on footwear fabrics supplied in rolls.
RCT latex printing technology: Developed for footwear materials that may be challenging for conventional heat transfer processes.
Integrated drying and winding: Combines the printing unit with a 3.2-meter drying chamber and an integrated winding system.
Flexible color configuration: The machine supports different color configurations to accommodate varying printing requirements.
Production-ready integration: RIP software, a high-specification computer, and selected optional systems can be configured at the factory.

This solution is particularly suitable for manufacturers processing large quantities of footwear fabrics in roll form.

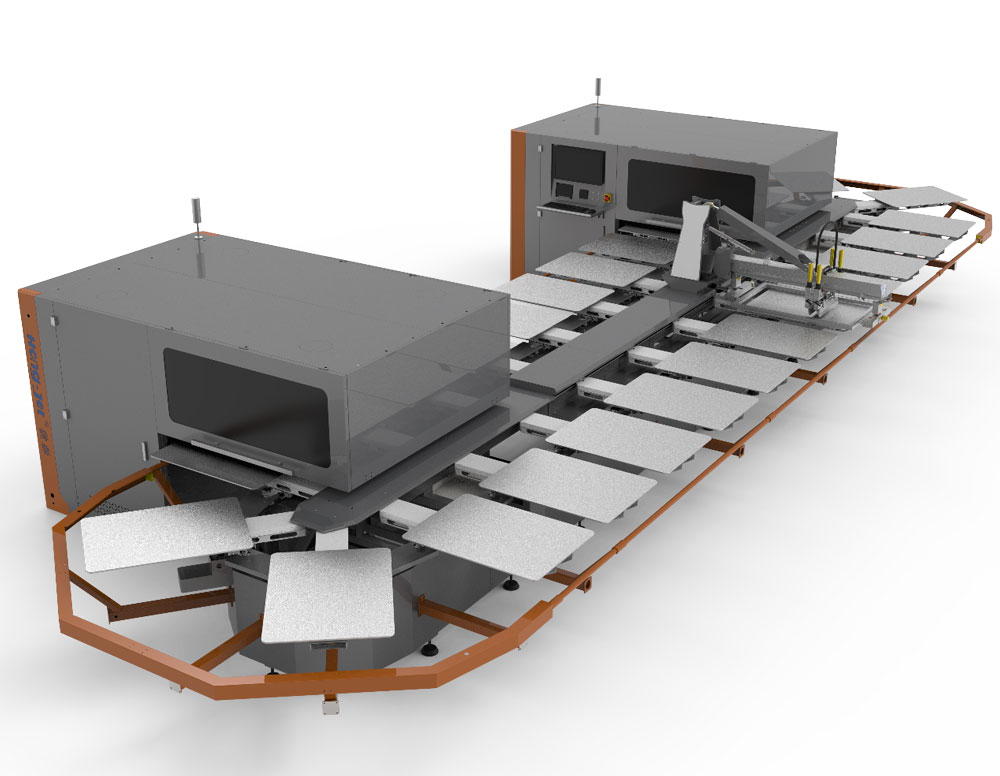

2. High-Volume Cut-Piece Printing Solution - Equipment: Hong-Jet^® Pishow Epson i3200-A1 Printhead-Based Oval Digital Printing Machine

For manufacturers printing individual footwear components, HONGSAM provides an oval digital printing solution designed to improve production throughput and reduce labor requirements.

The project builds on the successful application of Hong-Jet^® latex flatbed printing equipment in the footwear materials industry. As production demands increased, the solution evolved toward an oval machine configuration with two dedicated digital printing stations.

The two stations have distinct roles:

OP printing station: Equipped with 8 Epson i3200-A1 printheads.
Eight-color printing station: Equipped with 16 Epson i3200-A1 printheads.

With 24 Epson i3200-A1 printheads in total, the two stations operate through separate printhead groups, allowing their respective printing tasks to be handled independently. The production line also incorporates pallets, segmented flash dryers, and a squeegee arm to support the overall cut-piece production workflow. This solution is intended for footwear manufacturers seeking higher throughput and lower labor requirements in large-volume cut-piece printing.

How to Choose the Right Footwear Printing Solution

The two equipment configurations address different production formats and should be selected according to the customer's material handling method and manufacturing requirements.

Selection factor	Hong-Jet^®HJ-1820L Belt Printer	Hong-Jet^® Oval Digital Printing Machine
Primary application	Roll-to-roll footwear fabric printing	High volume footwear cut-piece printing
Material format	Continuous rolls	Individual components loaded onto pallets
Production approach	Continuous printing, drying, and winding	Pallet-based printing with integrated downstream equipment
Key Production objective	Efficient contiuous fabric processing	Higher cut-piece throughput and reduced labor requirements
Specified production metric	75-85m/h	280 pcs/h under the stated condition
Best suited to	Roll material manufacturers and fabric printing operations	Manufacturers producing large volumes of footwear components

For manufacturers primarily processing roll materials, the HJ-1820L provides an integrated roll-to-roll configuration.

For manufacturers printing pre-cut components and prioritizing production throughput, the oval machine provides a dedicated production-line solution.

The two approaches can be evaluated separately or as part of a broader footwear material printing strategy, depending on the customer's product range and factory workflow.

Application Materials and Process Validation

Footwear materials vary in fiber composition, surface structure, thickness, and heat sensitivity. Printing results therefore depend not only on the equipment but also on material compatibility and process settings.

Hong-Jet^®️ RCT latex printing solutions have been developed for footwear material applications, including mesh fabrics and selected blended or heat-sensitive materials.

Before confirming a production configuration, manufacturers should evaluate:

Material compatibility: Test the actual footwear fabric or cut-piece substrate.
Print quality: Assess color appearance, detail reproduction, and coverage according to the product requirements.
Drying and curing: Validate suitable process conditions for the selected material and ink system.
Production performance: Confirm achievable speed and output under representative operating conditions.
Finished-product requirements: Evaluate adhesion, flexibility, durability, and other relevant performance criteria for the intended footwear application.

Material testing and process validation are recommended before full-scale production. Performance requirements should be established according to the customer's materials, application, and finished-product standards.

A Complete Footwear Printing Solution from HONGSAM

Successful footwear material printing requires more than a printing machine. Equipment configuration, ink technology, software, drying, material handling, and process parameters must work together.

The HJ-1820L and oval machine solutions combine Hong-Jet^® printing equipment with HONGSAM RCT latex printing technology to address two different manufacturing needs: continuous roll-material printing and high-volume cut-piece production.

By matching the equipment configuration to the customer's production format, manufacturers can develop a printing workflow suited to their material range, production capacity, and factory requirements.

HONGSAM can work with footwear material manufacturers to evaluate application requirements, confirm equipment configurations, and arrange material testing before production implementation.

Looking for a digital printing solution for footwear materials? Contact HONGSAM to discuss your fabric types, production format, target output, and printing requirements. Our team can help evaluate a suitable roll-to-roll or cut-piece printing configuration for your application.
