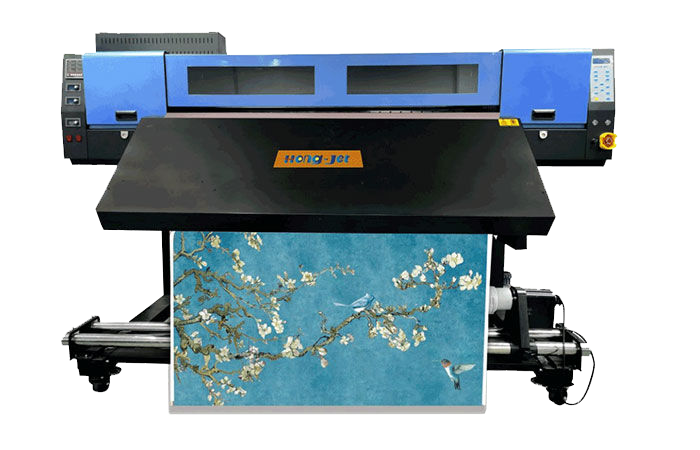

Hongjet Water Based Latex Printer

Latex Printers

Water Based Latex Printer 1.6m

▪ Printer Type: Hongjet Water Based Latex Ink Printer 1.6m

▪ Print width: 1.6m

▪ Ink Colors: C M Y K W OP

▪ Printing Materials: Tyvek Paper, Wall Paper, Grainy Paper, Kraft Paper, etc.

Application

Hongjet latex ink printer can be used for different printing media: PVC film, PET, PP, tyvek, art paper, kraft paper,art paper, etc.

Product Advantages

Use water based latex ink, no smelling, no corrosion, no volatilizing, environment friendly.

Vivid color, high saturation, wide color gamut.

High dry/wet rubbing fastness, high light fastness.

Unique OP (optimizer) ink is used in conjunction with professional color ink & white ink, suit for printing on various types of materials, including the uncoated media.

Printing area does not need heating or radiation drying, more safe to the printhead and printing material.

Imported linear guide rail; Germany imported wires; imported high-power; AC servo motor; Carriage anti-collision device; Fully automatic ink, supplying & alarming system.

Patent design high efficiency printer, intelligent control hot air circulation, low noise, low consumption, high efficiency, Eco-friendly and power saving. Precise temperature control on different areas separately, adapting to various printing modes.

Printing Technology

Product Qualification

CE Certificate

Latex Ink SGS Certificate

Patent

ISO9001

Patent

Printing Show

Technical Parameters

Printing Specifications			Computer Configuration
Printhead	EPSON I32100-A1		Compputer	CPU: i5 internal storage > 8GB
Printhead No.	3-4		System	Win7 / Win 10
Output Precision	3601800dpi 7201080dpi 720*2400dpi		Interface	USB
Printing Speed	OP+W+Color	OP+W+Color+Color	Software	MainTop, PhotoPrint
Economy Mode	22m²/h	34m²/h	Power Source	AC-220V, 50Hz / 60Hz
Production Mode	16m²/h	25m²/h	Power	3KW
Quality Mode	13m²/h	20m²/h	Packaging Specifications
Ink Configration			Machine Dimension	3760 * 1130 * 1600mm (L * W * H)
Ink Type	Water-based eco-friendly latex ink		Net Weight	1000kg
Color	KCMY (LC/LM/R/B/OR/FM/FY for optional) + W + OP		Package Dimension	3800 * 1180 * 1650mm (L * W * H)
Ink Supply	Big capacity ink supplying system + ink shortage alarm + white ink circulation		Gross Weight	1100kg

Product Development Background

Hongsam JETALL water-based latex ink is environmentally friendly. There is no odor either during the printing process or in the finished product. It effectively improves the environmental quality of the product and caters to market needs. It improves the production environment and reduces labor risks. There are no flammable consumables, which reduces production fire risks. It has the advantages of adapting to the diversity of printing media and image durability, and is especially suitable for industries with extremely high environmental requirements such as decoration, wallpapers and murals. It is a functional ink that represents the future direction of inkjet printing.
